Heavy Duty Equipment
Heavy Duty Stertil-Koni Equipment!
Mobile Columns
Mobile Column Lifts from Stertil-Koni allow you to safely lift a wide range of heavy duty vehicles quickly and efficiently. From delivery vans and pumper trucks to school buses and fire engines, from agricultural vehicles and airport tugs to class 8 tractor trailers and utility trucks, we lift them all. Lifting capacities range from 14,000 lbs. to 40,000 lbs. per column.
Lifting Capacity: 18,500LBS
Lift System: Hydraulic
Lifting Height: 73 Inches
Lifting Time: 94 Secs
Column Height: 97 Inches
*Click Here for Brochure*
Wireless
Wireless Mobile Column Lifts: No external power source is required, no interconnecting cables necessary and hence no risk of tripping - all with minimal set up time.
Earth Lift
EARTHLIFT: The first hydraulic GREEN Mobile Column Lift in the industry. The Active Energy Retrieval System (AERS) allows up to 50% more lifting cycles.
Cabled
Cabled Mobile Column Lifts: Utilizes building power, voltage range from 220 VAC-single phase, to 208 - 575 VAC-three phase, all at a more economical price point.
Inground Lifts
Inground hydraulic vehicle lifts from Stertil-Koni continue to set new standards in precision heavy duty lifting, performance, durability, ease-of-use and environmental containment.
Proven performers, they are ideal for lifting buses, trucks, utility vehicles and much more. And, maintenance techs love that they provide full access to the vehicle undercarriage while delivering the best in wheels-free lifting.
Stertil-Koni’s award-winning inground lifts include the ECOLIFT, an ultra-shallow, full-rise, inground scissor lift with capacities of 60,000 and 90,000 lbs. and the DIAMONDLIFT - our full-rise telescopic piston lift with capacities ranging from 64,000 to 105,000 lbs. – available in either a “cassette” or “frame” version.
Diamond Inground lift
Capacity up to 35,000 lbs. per piston Electronically synchronized for maximum safety and convenience Hard-chrome plated piston rods for maximum protection against corrosion, wear and debris Mechanical locking system utilizes a hardened, nitro carburized locking rod for maximum protection ebright Smart Control System - Advanced Touchscreen Technology Offers Fingertip Control All power units and control components are located above floor level Low oil volume – only 4.5 gallons of hydraulic fluid required per piston Aluminum trench covers with 13,600 lbs. drive over load ALI Gold Certification Label Continuous Recess movable lifting system
ECO Inground Lift
ECOLIFT is the industry’s original ultra-shallow, full-rise axle-engaging inground scissor lift. Available in a 2, 3 or 4 scissor configuration, with a total lifting capacity of 60,000 lbs., 90,000 lbs., and 120,000 lbs. respectively – at 30,000 lbs. per scissor. Wheels-free lifting with superior ease-of-use and performance Ultra-shallow pit design, only 34” Ideal for retrofit installations and new workshops Full rise 70” lifting height for maximum convenience and usability Electronically synchronized for ultimate safety Free-standing console provides easy access for quick service and maintenance Continuous recess for maximum flexibility
Diamond Inground Lift
Maximum Innovative Industry Safety
The Stertil-Koni DIAMONDLIFT is the safest in-ground piston lift available for workshops. The standard gravity engaged locking has increments of 3 inches with 21 locking positions starting from 8 inches at floor level, which makes the inground lift ideal for tire workshops.

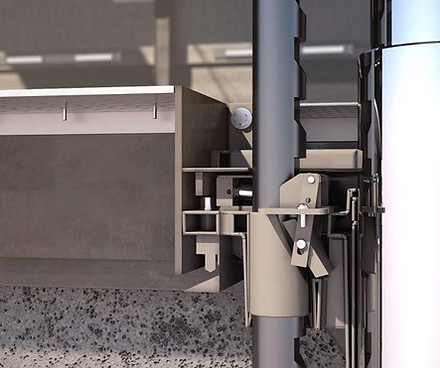

The locking system can be used as a parking system. When you lower the lift in the locks it fully carries the vehicle, the pistons are free of pressure and therefore no risk of unexpected lowering.
Additional safety features:
-
Ultrasonic sensors provide real-time synchronization
-
Integrated cover systems
-
Programmable lifting height
-
No high-power electric components in the pit
-
Audio and visual safety features
-
Optional detachable wired remote control

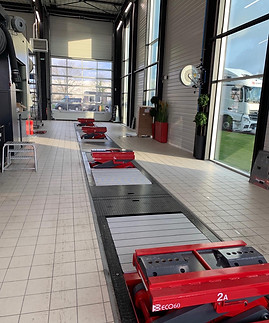

ECO Lift
Wheels-free Maintenance
The Stertil-Koni inground scissor ECOLIFT keeps the vehicle's wheels fully accessible, making it ideal for brake jobs and suspension work among other service jobs benefitting from a wheels-free lifting approach.
ebright Smart Control System
The revolutionary ebright Smart Control System combines intuitive ease of use with maximum visual information about the lifting process, making lifting safer, smarter, and more efficient than ever before.
Ultra-Shallow Construction
The ECOLIFT's shallow-pit construction has a depth of just half of the lighting height. With an installation depth of 34", the ECOLIFT is ideal in installations with high water tables, unstable soil, or thick bedrock foundations.
Easy Installation
Not only is the installation depth extremely low, the ECOLIFT arrives on site pre-assembled and tested. The ECOLIFT is a drop-in/bolt-in design, which makes installation a breeze. Additionally, the ECOLIFT is the only relocatable inground lifting system in the world.
Specifications
ModelECO: 60ECO 90ECO 120ECO
Lifting Capacity: 60,000 lbs. 90,000 lbs. 120,000 lbs.
Lifting Height: 70 inches 70 inches 70 inches
Pit Depth: 34 inches 34 inches 34 inches
Travel Range: 10, 13, 17 feet 10, 13, 17 feet 10, 13, 17 feet
Minimum Wheelbase: 48 inches 48 inches 48 inches
Lifting Time : 90 seconds 90 seconds 90 seconds
Compressed Air: 90 PSI at 5CFM 90 PSI at 5CFM 90 PSI at 5CFM
Electrical: 208-230/460/575 208-230/460/575 208-230/460/575
Motor Power: 2 x 5 hp 3 x 5 hp 4 x 5 hp
4-POST PLATFORM LIFT
Stertil-Koni Heavy Duty 4-Post Lifts are available in four models and suitable for lifting a wide range of commercial vehicles -- even 3 wheel forklift trucks.
4-Post lifts from Stertil-Koni are available in four models:
-
The ST 4120 is one of the most advanced and unique medium capacity HD four post lifts, featuring electronic synchronization and a lifting capacity up to 30,000 lbs.
-
The ST 4175 model has a lifting capacity up to 50,000 lbs. and is designed free of cross beams for complete access.
-
And, the ST 4250 really stands out in heavy duty lifting, with a capacity of 66,000 lbs., or 132,000 lbs. in a tandem configuration.
-
The ST 4600, with a capacity of 132,000 lbs. is truly a unique drive-on platform lift and is regarded as the largest certified platform lift of its type in North America.
-
Dependable hydraulic technology
-
Very low drive-on height
-
Ideal for low-ground-clearance vehicles
-
Runways available in multiple lengths (depending on model)
-
Automatic overload protection
-
Independent mechanical locking system
-
Tandem configurations
SKYLIFT - Platform Lift
The Stertil-Koni SKYLIFT is a superior heavy duty platform lift that uniquely provides a “clear floor” concept for the user with a true, vertical rise. The product’s elegant design includes two independent runways, vertical lifting, no crossbeams, no overhang and no base frame.
The SKYLIFT hydraulic vehicle lift provides free access from all sides with easy installation and minimal maintenance. The lift’s modular design allows for flush mounted or surface mounted installation and permits various lengths to be incorporated in a single lift.
-
Free access from all sides
-
No overhang, no crossbeams, no base frame
-
Mechanical locking system
-
True vertical lifting
-
Available in flush or surface mounted
-
Tandem configuration, up to 100 ft. in length with capacity of 156,000 lbs.
-
Automatic safeguard against overloading or uncontrolled descent
-

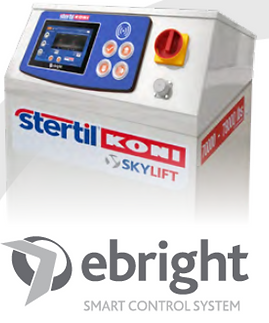

ebright Smart Control Console
.jpg)
.png)
Freedom of Movement
No overhang, no crossbeams, no base frame and four independent support legs; providing optimal working space for the mechanic in and around the lift and leaving more workspace over.
The Stertil-Koni platform lift has an innovative Y-shaped construction which makes it both robust and at the same time stream-lined for optimum space-saving. The clever patented design means that the supporting base plates effectively divert the forces and this with a lightweight construction.
Flexible & Versatile for all Workshops
The SKYLIFT platform lift is available in a variety of models suitable for not only a wide range of vehicles but also for a wide range of workshop situations. Do you have an existing workshop and do not want to renovate. Consider the surface-mounted SKYLIFT, requiring no pit construction.
For renovations or new workshops, consider the SKYLIFT flush mounted version and semi-flush hybrid version.
The SKYLIFT Wash Bay version is ideal for harsh outdoor installations. Water-resistant, anti-corrosion, hot-dipped galvanized steel platforms, and a sealed bay come standard on this rugged version.
Take a look at the features of all versions shown above.
Safe Workspace
The SKYLIFT has enough head space to work comfortably underneath the lift with a generous vehicle lifting height of 69". Additionally, there is a programmable height for every installation. The SKYLIFT flush-mounted version is available recess cover plates which automatically raise with the lift to fill the recesses - no gaps are left on the floor. The clear floor space and overhead height makes your mechanic's job safer, faster, and gets your vehicle off the lift and back on the road.
Easy & Quick Installation
The SKYLIFT Surface Mount requires only 16 installation anchors in your floor. You can keep your workshop open while installing a new SKYLIFT, further maximizing your shop's productivity.
Freedom Lift
For Wheels-Free Maintance jobs
2-POST LIFTS
FREEDOMLIFT combines peak performance and safety through a symmetrical, open floor design that optimizes workspace in the shop. Engineered to lift a broad range of light-to-medium-duty vehicles with capacities ranging from 16,000 lbs. to 30,000 lbs.
-
Flexible and efficient
-
Optimal workshop space
-
Single and double telescopic arms
-
Extended Flex Arms (EFA) offers maximum flexibility
-
ANSI/ALI-ALCTV / CSA Certified
